Product Description
Precast Manholes, Catch Basins & Utility Chambers UAE
PRECAST UAE manufactures precast manholes, catch basins, inspection chambers, and utility chambers for drainage, telecom, electrical, water, and infrastructure networks across UAE projects. Units are produced to approved drawings with project-specific top openings, side entries, design loading, reinforcement, lifting details, and QA documentation.
Manholes are drawing-led products. The right quotation depends on internal dimensions, depth, cover loading, wall thickness, pipe or duct openings, lifting requirements, and the authority or consultant specification.
What We Manufacture
- Drainage manholes: inspection chambers for stormwater and site drainage networks.
- Catch basins: square or rectangular drainage chambers with project-specific top openings and side knockouts.
- Telecom chambers: precast access chambers for Etisalat, Du, and project telecom corridors.
- Electrical chambers: cable access chambers for LV, HV, and project-specific electrical networks.
- Valve and utility chambers: access boxes for water, irrigation, and infrastructure service points.
- Custom RCC chambers: drawing-led chambers with project-specific openings, cover slabs, and embeds.
- Custom chamber units: one-piece or modular configurations with recessed access openings, bearing ledges, and formed service entries.
Typical Technical Range
| Specification | Value / Description |
|---|---|
| System Type | Manhole / Catch Basin / Inspection / Utility Chamber |
| Internal Dimensions | Custom to drawings |
| Depth | Project-specific |
| Wall Thickness | Project-specific, commonly 150mm to 250mm |
| Concrete Grade | C35/45 to C40/50 typical |
| Openings | Pipe, duct, sleeve, or cable entries to schedule |
| Cover Loading | Pedestrian, carpark, road, or heavy-duty requirement |
| Documentation | Shop drawings + QA/QC package |
Catch Basins & Inspection Chamber Units

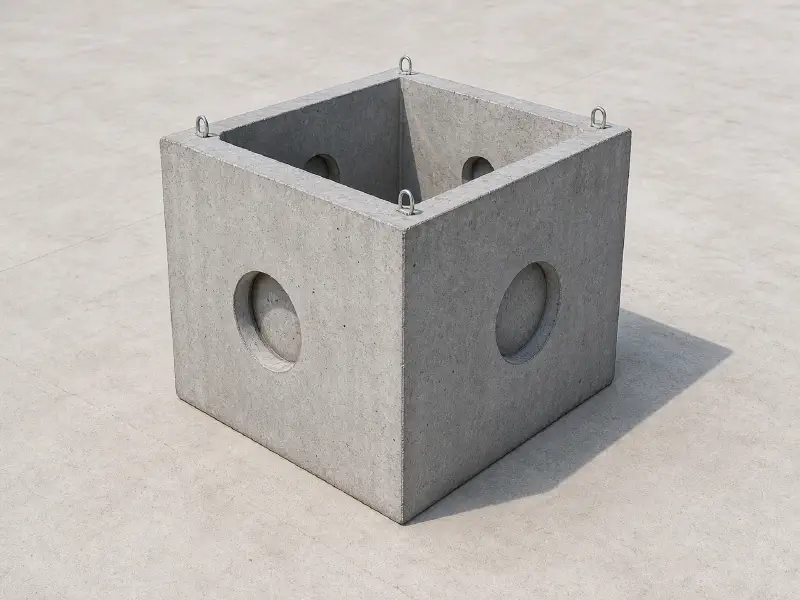

Square units similar to the supplied CB-type reference are precast chamber bodies, not removable manhole covers. They can be manufactured with a broad concrete top rim, recessed square access opening, hollow interior, and formed lower side knockouts or service entries. The outside dimensions, wall thickness, opening sizes, reinforcement, bearing details, and lifting arrangement follow the approved project drawing.
Any removable metal, composite, or concrete access lid placed above the chamber is a separate component and should be identified independently in the BOQ.
Common UAE Applications
- Road and infrastructure works: drainage and utility access points.
- Master-planned communities: telecom, electrical, water, and irrigation chambers.
- Industrial yards: heavy-duty service chambers and inspection points.
- Utility corridors: cable and duct access chambers for phased networks.
- Ports and logistics zones: robust chambers for operational infrastructure.
Why Precast Manholes
Precast manholes reduce on-site shuttering, steel fixing, pouring, curing, and weather delay. They also improve dimensional consistency, opening accuracy, and QA traceability compared with ad hoc site casting.
For active projects, the value is usually in speed and certainty: chambers can be cast while the site is being prepared, then delivered in sequence for installation.
Delivery & Documentation
We prepare manhole and chamber packages around the project sequence:
- shop drawings before production
- dimensional checks and reinforcement records
- concrete test records and material documentation
- lifting anchors and safe handling assumptions
- phased delivery by network zone or installation priority
What To Send For Quotation
Send your chamber drawings, BOQ, outside and internal dimensions, height, wall thickness, top-access opening, side-entry or knockout schedule, design loading, reinforcement notes, quantities, delivery location, and required dates through our contact page. List any separate access lid, frame, or grating as its own BOQ item.
