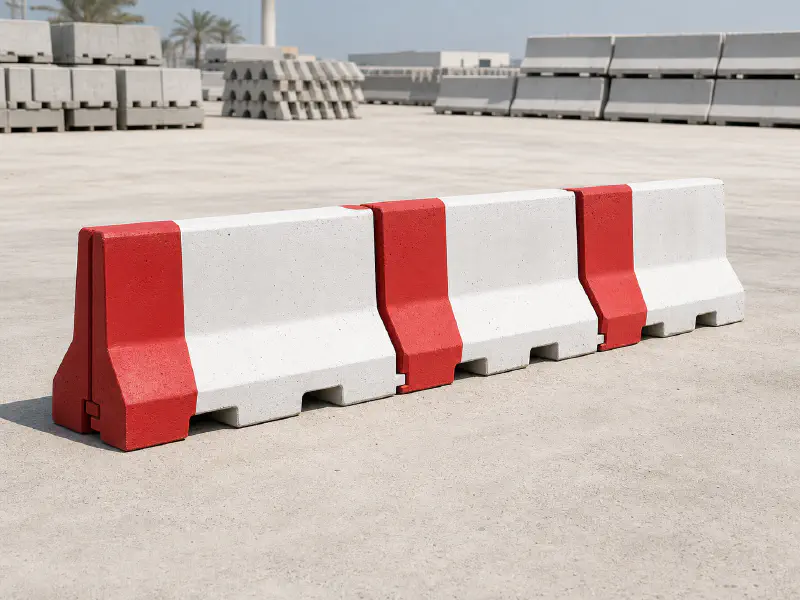

Concrete Barriers & Jersey Barriers UAE
Precast Jersey, K-rail, F-type, and interlocking concrete road barriers for UAE diversions, work zones, highways, and site security.
Indicative price AED 150 – 850 Subject to specification and quantity. Final quote on request.
Weight
1,600 / 2,400 kg
Height
810 mm
Length
1m / 2m / 3m
Strength
50 MPa
Technical Support Available
Delivery across UAE
Product Description
Concrete Barriers & Jersey Barriers UAE
PRECAST UAE manufactures and supplies precast concrete barriers, Jersey barriers, K-rail barriers, single-sided barriers, double-sided barriers, and interlocking road barriers for UAE construction, roadworks, traffic diversion, and site security projects.
The page is intentionally framed around the buying category: concrete barriers and Jersey barriers in UAE. RTA and municipality alignment still matters, but buyers usually search for concrete barriers, road barriers, Jersey barriers, dimensions, price, and delivery coverage before they ask for a specific approval note.
Types of Concrete Barriers We Supply
- Jersey / K-rail barriers: the standard choice for roadworks, lane separation, work zones, and traffic diversion.
- Single-sided and double-sided road barriers: selected according to road layout, exposure, and consultant specification.
- Interlocking concrete barriers: male/female jointed barrier lines for more stable temporary or semi-permanent runs.
- Temporary concrete barriers: stock-backed supply for fast site mobilization, phase changes, and urgent perimeter work.
- New or refurbished barriers: new mould-finish units for high-profile work, refurbished structurally sound units for cost-sensitive site packages.
Concrete Barrier Dimensions and Weights
Typical project requests include 1m, 2m, and 3m barrier lengths. Exact dimensions, weight, lifting detail, reflector layout, and paint finish should be confirmed against the drawing, authority note, or consultant specification.
| Specification | Common Value / Description |
|---|---|
| Barrier Type | Jersey / K-rail / road barrier |
| Length Options | 1000 mm / 2000 mm / 3000 mm |
| Height | 810 mm typical |
| Base Width | 600 mm typical |
| Weight | Approx. 1600 kg to 2400 kg by length |
| Concrete Grade | C40/50 typical |
| Connection Type | Male/Female interlock where required |
| Handling | Lifting eyes or lifting holes |
Concrete Barrier Price in UAE
Concrete barrier pricing is not one flat number. The quote changes with the length mix, quantity, new or refurbished condition, paint colour, reflector requirement, delivery location, offloading method, and urgency.
For a fast price, send the quantity, barrier length mix, delivery emirate, required date, unloading access, and any RTA, municipality, or consultant specification. We can then quote supply, delivery, and handling assumptions clearly.
Manufacturing & QA
Our barrier production follows a controlled precast process designed for consistent geometry, safe lifting, and predictable site performance.
- Concrete Strength: Design mix C40/50 (40 N/mm² Cylinder / 50 N/mm² Cube) at 28 days.
- Cement Type: OPC (Type I) for standard applications; SRC (Type V) available for saline/coastal environments.
- Reinforcement: High-yield deformed steel bars (460 N/mm²) providing tensile strength and crack control.
- Curing: Steam-cured or water-pond cured to achieve 35MPa early strength for safe lifting.
- Finish: F3/F4 off-shutter finish, free from honeycombing and significant voids.
Key Technical Advantages
- Impact Deflection: The K-rail profile helps redirect vehicle movement and reduce climb-over risk in work zones.
- Interlocking Connectivity: Male/Female interlocking joints ensure a continuous, rigid barrier line that resists lateral displacement during collision.
- Zero-Fixing Stability: At 2,400 kg, the unit’s deadweight provides sufficient inertia to function as a gravity retaining structure or security blockade without ground bolting.
- Lifting System: Integrated lifting eyes or through-holes designed for standard shackles, enabling rapid crane deployment (up to 150m linear run per shift).
RTA, Municipality, QA and Documentation
RTA and municipality references are handled as project compliance requirements, not as the only commercial title of the product. When the package requires it, we align barrier profile, finish, reflectors, documents, and delivery planning to the relevant authority or consultant requirement.
Applications in the UAE
- Highway diversions: temporary lane separators for construction zones on Sheikh Zayed Road, Emirates Road, and active road corridors.
- Site Security (HVM): Perimeter hardening for critical infrastructure, embassies, and large-scale events.
- Retaining Walls: Gravity retaining structures for aggregate bays and soil stabilization.
- Edge Protection: Prevention of vehicle run-off at quarry edges and drop-off zones.
Delivery Across the UAE
We plan concrete barrier delivery across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For live roadwork or staged construction packages, dispatch sequence matters as much as the barrier itself.
Concrete Barriers by Emirate
Barrier requirements change by emirate — authority specification, road network, and access conditions all differ. We supply each market with the right profile, paperwork, and delivery plan.
Concrete Barriers in Dubai
For Dubai projects we supply RTA-aligned Jersey and K-rail barriers for lane diversions, work zones, and event perimeters across Sheikh Zayed Road, Al Khail Road, Emirates Road, and the wider RTA network. Stock-backed supply and Hiab crane delivery keep fast-moving Dubai roadworks on programme. See our dedicated concrete barriers in Dubai page for RTA-network supply and delivery detail.
Concrete Barriers in Abu Dhabi
Abu Dhabi packages are supplied to municipality and consultant specification for highway diversions, Western Region infrastructure, and large security perimeters. We coordinate longer-haul delivery into Abu Dhabi island, Mussafah, and remote Al Dhafra sites with sequenced dispatch. See our dedicated concrete barriers in Abu Dhabi page for municipality-spec supply and Western Region logistics.
Concrete Barriers in Sharjah
We supply concrete road barriers across Sharjah’s industrial areas, ring roads, and active development corridors. New and refurbished barrier options suit both high-profile frontages and cost-sensitive site hoarding packages.
Concrete Barriers in Ajman
Ajman roadwork and coastal development projects are served with Jersey and interlocking barriers for traffic separation, corniche works, and perimeter control, delivered on short lead times.
Concrete Barriers in Ras Al Khaimah
Ras Al Khaimah sites — including quarry access roads, mountain corridors, and tourism developments — are supplied with heavy-duty barrier runs and gravity retaining applications suited to demanding terrain.
Concrete Barriers in Fujairah
For Fujairah and the East Coast we supply barriers for port logistics zones, highway works, and industrial perimeters, with delivery planned around the longer cross-country haul.
Concrete Barriers in Umm Al Quwain
Umm Al Quwain industrial and infrastructure projects are supplied with standard and custom barrier profiles, with combined loads available to reduce transport cost on smaller orders.
Delivery & Project Handling
Barrier supply is usually won or lost on timing, not just casting. We plan with project teams around:
- delivery windows and access restrictions
- lifting sequence and unloading method
- return or relocation requirements between phases
- stock-backed supply for urgent packages
If your package also includes security or protective precast units, see our Precast Bunkers & Concrete Shelters page.
Why Choose PreCastUAE?
- Site-to-Site Relocation: We manage the entire lifecycle, including crane-truck logistics to move barriers directly between your active project sites, minimizing downtime.
- Mass Production: High daily casting capacity ensures we can meet demands for 5km+ linear runs on short notice.
- Condition Options: Available as New (Mould Finish) for high-profile areas or Refurbished (Structurally Sound) for cost-effective site hoarding.
What To Send For Quotation
Send your drawing reference, barrier length mix, quantities, delivery location, required dates, and any authority or consultant specs through our contact page. That gives us enough information to quote supply and logistics clearly.
Frequently Asked Questions
Do you supply concrete barriers and Jersey barriers in the UAE?
Yes. PRECAST UAE supplies precast concrete barriers, Jersey barriers, K-rail barriers, and interlocking road barriers for traffic diversions, work zones, and site security packages.
What concrete barrier dimensions do you supply?
Common barrier lengths include 1m, 2m, and 3m units, with project-specific dimensions, weight, lifting points, and interlock details confirmed against the drawing or site requirement.
What affects concrete barrier price in UAE?
Price depends on barrier length, quantity, new or refurbished condition, paint or reflector requirements, delivery emirate, unloading method, and urgency.
Can you deliver to live traffic or diversion projects?
Yes. We plan dispatch around access windows, night work, crane handling, and site sequence so barriers arrive in the order crews need them.
What do you need to prepare a quotation?
Send the required length mix, quantity, delivery location, programme dates, and any authority or consultant specifications. We will price supply and delivery accordingly.
Technical Configurations
| Code | Type | Dimensions (LxHxW) | Weight (approx) | Concrete Strength | Reinforcement | Common Applications |
|---|---|---|---|---|---|---|
| JB-3-STD | Standard Jersey | 3.0m x 1.07m x 0.6m | 3,000-3,200 kg | 35 MPa (M35) | 16mm HYSD bars | Highway work zones, temporary diversions |
| JB-3-HD | Heavy Duty Jersey | 3.0m x 1.07m x 0.6m | 3,400-3,600 kg | 40 MPa (M40) | 20mm HYSD bars, Epoxy-coated rebar | High traffic areas, permanent installations |
| JB-4-STD | Standard Jersey (4m) | 4.0m x 1.07m x 0.6m | 4,000-4,200 kg | 35 MPa (M35) | 16mm HYSD bars | Construction sites, long straight sections |
| JB-6-STD | Long Span Jersey | 6.0m x 1.07m x 0.6m | 6,000-6,500 kg | 35 MPa (M35) | 16mm HYSD bars | Airport perimeters, large scale projects |
| JB-2-STD | Short Jersey | 2.0m x 1.07m x 0.6m | 2,000-2,200 kg | 30 MPa (M30) | 12mm HYSD bars | Tight spaces, curved alignments |
| JB-3-PAINT | Painted Jersey | 3.0m x 1.07m x 0.6m | 3,100-3,300 kg | 35 MPa (M35) | 16mm HYSD bars | Event management, high visibility zones |
| Code | Type | Dimensions (LxHxW) | Weight (approx) | Concrete Strength | Reinforcement | Common Applications |
|---|---|---|---|---|---|---|

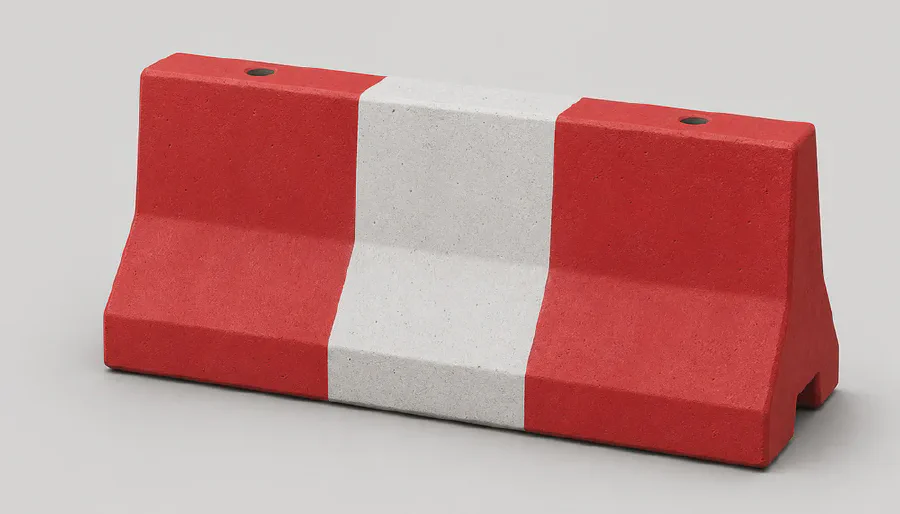

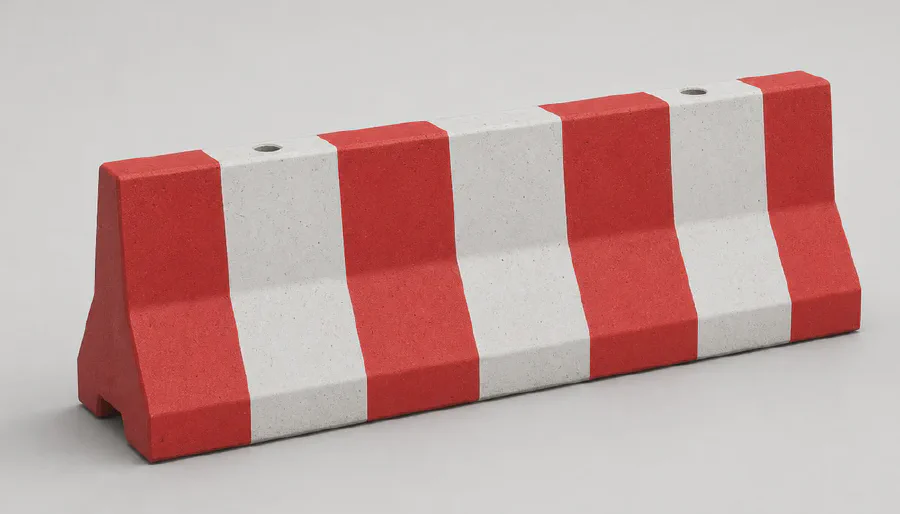

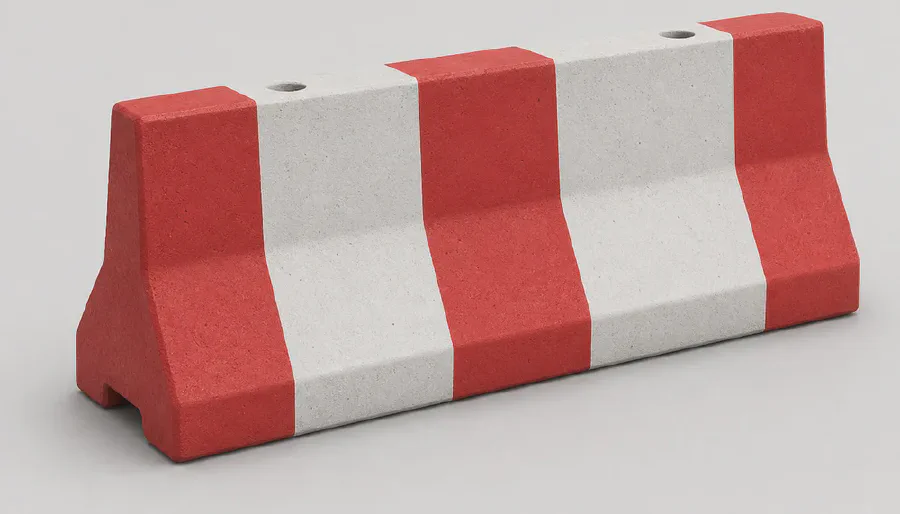

| KRL-3-STD | K-Rail Standard | 3.0m x 0.81m x 0.48m | 2,400-2,600 kg | 35 MPa (M35) | 16mm HYSD bars | Western standards projects, USA specs |
| KRL-4-STD | K-Rail Long | 4.0m x 0.81m x 0.48m | 3,200-3,400 kg | 35 MPa (M35) | 16mm HYSD bars | Highway median barriers |
| SSL-3-STD | Single Slope | 3.0m x 0.81m x 0.56m | 2,600-2,800 kg | 35 MPa (M35) | 16mm HYSD bars | General traffic control |
| SSL-3-HD | Single Slope HD | 3.0m x 0.81m x 0.56m | 2,800-3,000 kg | 40 MPa (M40) | 20mm HYSD bars | Heavy vehicle areas |
