Utility
Street Light Pole Foundation
Type 1 & 2 foundations with pre-installed anchor cages and earthing points.
Indicative price AED 360 – 680 Subject to specification and quantity. Final quote on request.
Type
Precast Concrete Base
Pole Height
For 6m - 12m Poles
Standard
RTA Type 1 / Type 2
Fixing
4-Bolt Cage (M24/M30)
Technical Support Available
Delivery across UAE
Product Description

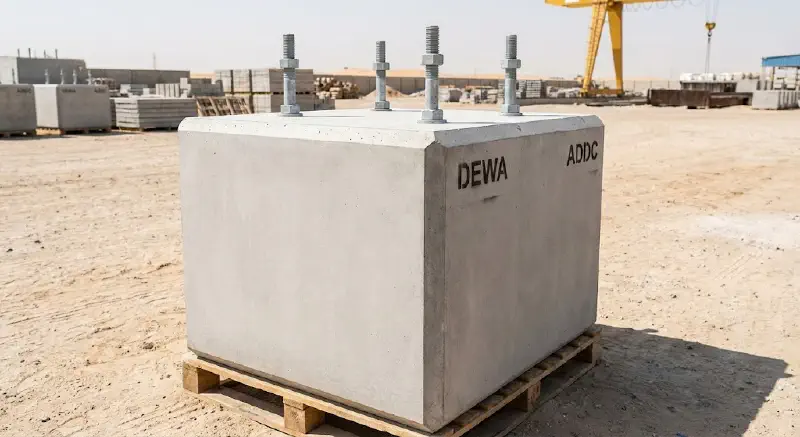

Precast Street Light Foundation (Pole Base)
Product Overview
The Precast Street Light Foundation is a “plug-and-play” structural footing designed to expedite the installation of street lighting columns in residential communities and arterial roads. By integrating the anchor bolt cage and cable ducts into a factory-cast block, we eliminate the complex logistics of on-site casting (excavation, shuttering, steel fixing, pouring, and curing).
This solution is particularly effective for large-scale developments where speed of installation and consistency of finish are paramount.
Material Specifications & Quality
- Concrete: C40/50 Sulfate Resisting Cement (SRC) for subsurface durability.
- Anchor Bolts: Hot Dip Galvanized (HDG) Grade 8.8 bolts, strictly positioned using CNC-machined templates.
- Reinforcement: High-yield steel cage designed to resist overturning moments and wind shear.
- Bitumen Coating: Optional external bitumen painting for enhanced waterproofing below grade.
Key Technical Advantages
- Construction Speed: Allows for immediate pole erection upon backfilling, reducing critical path timelines by days per pole.
- Precision Alignment: Factory casting guarantees bolt projection and pattern accuracy, eliminating the risk of misaligned poles.
- Integrated Services: Pre-installed PVC or HDPE sleeves allow for seamless cable pulling and looping.
- Type Compatibility: Standard designs available for Type 1 (4-6m) and Type 2 (8-10m) poles, as well as CCTV masts. Designed for RTA Type 1 and Type 2 Conical Poles.
Technical Data
| Specification | Value |
|---|---|
| Concrete Grade | C40/50 SRC |
| Bolt Configuration | 4-Bolt Pattern (PCD variable) |
| Bolt Size | M16 / M20 / M24 HDG |
| Ducting | 2x or 4x 63mm/110mm PVC Sleeves |
| Lifting System | 2x Lifting Hooks (Recessed or External) |
| Weight | 400kg - 2500kg (Design dependent) |
Applications in the UAE
- Residential Communities: Lighting for internal roads, parks, and walkways in master-planned developments. Standardized for residential community lighting in Deira/Bur Dubai zones.
- Carparks: Foundations for lighting columns in open-air parking lots.
- Security Infrastructure: Stable bases for CCTV camera poles and security gates.
- Signage: Foundations for cantilevered or gantry traffic signs.
Why Choose PreCastUAE?
- Customization: We fabricate custom steel templates to match any specific pole base plate flange.
- Technical Compliance: Designs validated against local wind load and soil bearing capacity requirements.
- Just-in-Time Delivery: Staggered deliveries to match cable laying and pole erection schedules.
